Garden Shed #1 - The Plan

It seems like we always have about half a dozen projects going on at once...

As part pf the larger plan for the property, I am going to add a detached garage / shop at some point in the near future. Currently we have a garden shed that is sitting where the garage needs to go, so we have to move it, and it's too big to easily pick up and relocate in one piece.

I intend to have my 13 year old son deconstruct the current shed, so we can reuse the materials as much as possible - then help build the new one. Obviously he will need some assistance, but I think it's good learning project for him. It keeps him busy this summer, gives him a challenge, lets him earn some money (I am looking at the positive here.) I am sure there will be some disaster recovery along the way, but it will make for a good story later.

Here is a photo of the current shed. It's 10" x 12" and looks like it was built at least 25 years ago. Other than the original shake roof, the shed is in excellent condition. It has ceder lap siding, 2x4 framing, and no plywood at all. The floor, shelves, etc, are all made of fir 1x4, which is mainly clear.

This shed is 120 sq ft. Our city's building code now allows utility sheds up to 200 sq ft without permitting, so we will go for that size.

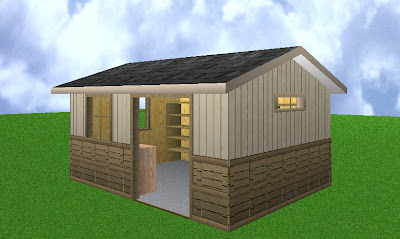

I want the shed to match the general style of the house (obviously ranch) after we redo the siding (probably next summer). Here is the concept model I am thinking about. I will reuse the cedar lap on the bottom of the shed and do a board-and-batten look on the top. The 1x4 should make good battens, once painted.

The difference between making a really nice looking shed and a plain one is some labor, which I find enjoyable anyway. This shed will be visible from the road, due to the orientation of our house, so I might as well make it look good.

I used PunchPro to design this. It's not the easiest program to use, but one you get the hang of it, it's a fairly robust tool. Once feature I like is the framing view.

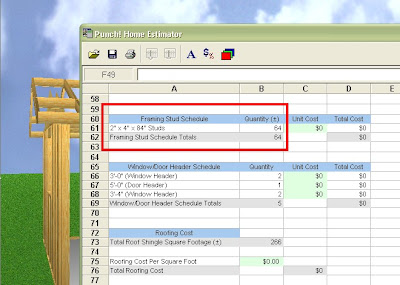

A really useful feature is the bill-of-material estimator. It's nice to be able to quickly sketch something up, then get the number of 2x4's, joists, etc.

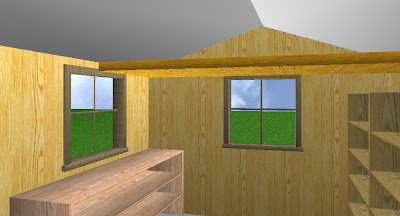

Here is an image of the interior - I still have not decided on this yet.
